Emulsions, suspensions, liquids, gels, biological samples, etc. can be studied with Freeze Fracture and Etching System EM BAF060.

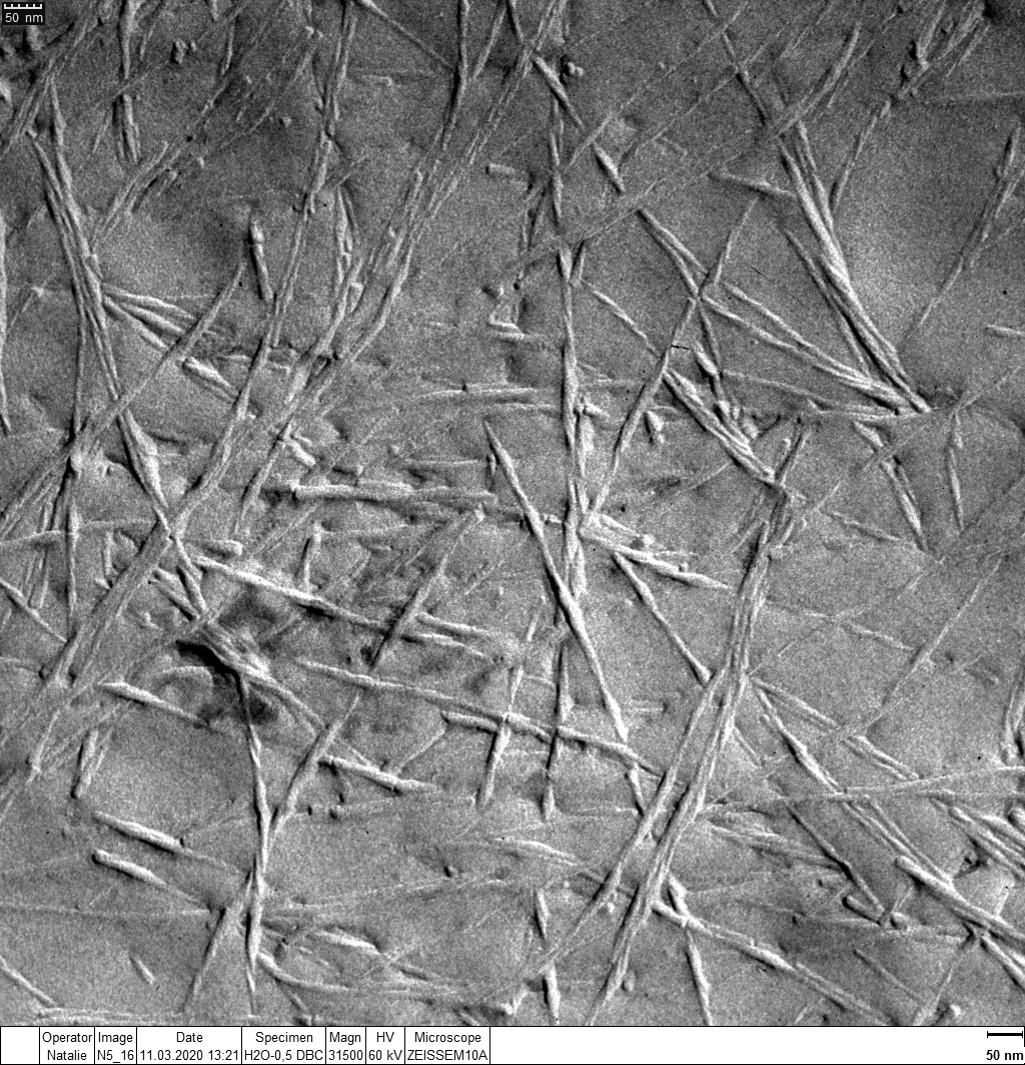

We use FFEM technique (freeze-fracture electron microscopy) to visualize the structure of binary organogels [1,2], of gelled and nongelled bicontinuous microemulsions [2, 9-10] as well as of gelled and nongelled lyotropic liquid crystals [3-8].
The systems of choice are:
1) H2O – n-decane – tetraethylene glycol monodecyl ether (C10E4) [2,3];
2) H2O – didodecyldimethylammonium bromide (2-C12DAB) [4];
3) H2O – heptaethylene glycol monododecyl ether (C12E7) [5-7];
4) H2O – sodium dodecylsulphate (SDS) – n-decanol [8];
5) H2O – N,N-dimethyl-N-ethyl-1-hexadecylammonium bromide (CDEAB) – n-decanol (see LLC-gels);
6) H2O – N,N,N-trimethyl-N-Tetradecylammonium bromide (C14TAB) – n-decanol (see LLC-gels);
to which the low molecular weight gelator (LMG) is added.
|
[1] The Molecular Organogel n-Decane/12-Hydroxyoctadecanoic Acid: Sol-Gel Transition, Rheology, and Microstructure. M. Laupheimer, N. Preisig, C. Stubenrauch, COLSUA, 2015, 469, 315-325. |
|
[2] Gelled bicontinuous microemulsions: a new type of orthogonal self-assembled systems. M. Laupheimer, Series Springer Theses, Springer: Heidelberg, 2014. |
|
[3] Gelled lyotropic liquid crystals: one more type of orthogonal self-assembled systems. Y. Xu, M. Laupheimer, N. Preisig, T. Sottmann, C. Schmidt, C. Stubenrauch, Langmuir, 2015, 31, 8589-8598. |
|
[4] Gelling Lamellar Phases of the Binary System Water − Didodecyldimethylammonium Bromide with an Organogelator, S. Koitani, S. Dieterich, N. Preisig, K. Aramaki, C. Stubenrauch, Langmuir, 2017, 33, 12171–12179. |
|
[5] The Twofold Role of 12-Hydroxyoctadecanoic Acid (12-HOA) in a Ternary Water—Surfactant—12-HOA System: Gelator and Co-Surfactant. K. Steck, C. Schmidt, C. Stubenrauch, Gels, 4, 78, 2018. |
|
[6] Gelling Lyotropic Liquid Crystals with the Organogelator 1,3:2,4-Dibenzylidene-d-sorbitol Part I: Phase Studies and Sol–Gel Transitions. K. Steck, C. Stubenrauch, Langmuir, 2019, 35, 17132-17141. https://doi.org/10.1021/acs.langmuir.9b01688. |
|
[7] Gelling Lyotropic Liquid Crystals with the Organogelator 1,3:2,4-Dibenzylidene-d-sorbitol Part II: Microstructure. K. Steck, N. Preisig, C. Stubenrauch, Langmuir, 2019, 35, 17142-17149. http://dx.doi.org/10.1021/acs.langmuir.9b03346 |
|
[8] Gelation of Lyotropic Liquid-Crystal Phases—The Interplay between Liquid Crystalline Order and Physical Gel Formation. S. Dieterich, T. Sottmann, F. Giesselmann, Langmuir, 2019. https://doi.org/10.1021/acs.langmuir.9b02621. |
|
[9] Studying orthogonal self-assembled systems: phase behaviour and rheology of gelled microemulsions. M. Laupheimer, K. Jovic, F. E. Antunes, M. da Graça Martins Miguel, C. Stubenrauch, Soft Matter, 2013, 9, 3661-3670. |
|
[10] Studying orthogonal self-assembled systems: microstructure of gelled bicontinuous microemulsions. M. Laupheimer, T. Sottmann, R. Schweins, C. Stubenrauch, Soft Matter, 2013, 10, 8744-8757. |
|
|
